Product Model:469-P5-HI-A20
Manufacturer:General Electric
Voltage Range DC:90 – 300 VDC
Voltage Range AC:70 – 265 VAC
Frequency Range:48 – 62 Hz
Phase Current Inputs:5 A phase CT secondaries
Analog Outputs:Four (4) 4 to 20 mA analog outputs
Environmental Protection:Harsh (chemical) environment conformal coating
Communication Ports:3 (Front RS232, Rear Com RS485 and Aux RS485)
Software Compatibility:EnerVista 469 Setup
Weight Before Packaging:Less than 15 lbs

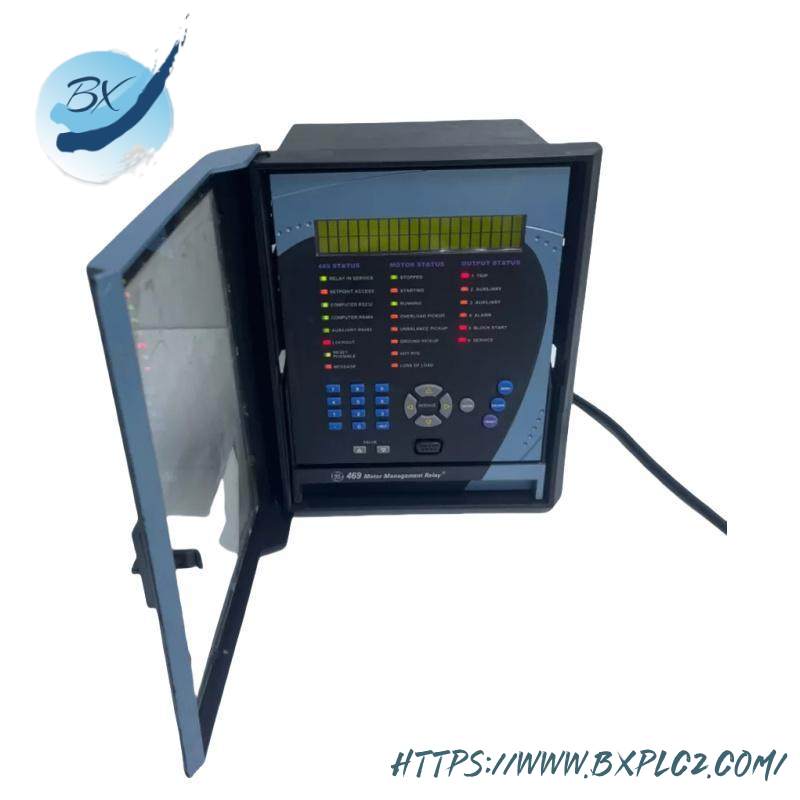

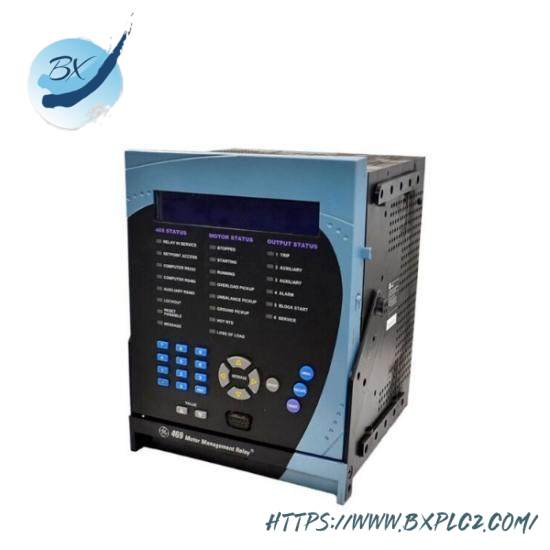

The GE SR469-P5-HI-A20 is a high-performance Motor Management Relay designed specifically for industrial control systems. Its primary function is to monitor and protect motors from various faults and issues, ensuring efficient operation and longevity.
This advanced relay comes equipped with multiple RTD inputs, which allow for accurate temperature measurement and hot spot detection within the motor system. The RTDs include 100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, and 100 ohm Platinum, providing comprehensive thermal protection.
With a wide voltage range of 90-300 VDC or 70-265 VAC and a frequency range of 48-62 Hz, the GE SR469-P5-HI-A20 can operate reliably in diverse industrial environments. It features five phase current inputs and four 4 to 20 mA analog outputs, enabling precise control and monitoring.
Designed with environmental resilience in mind, the relay incorporates conformal coating, making it suitable for harsh chemical environments. This ensures reliable performance even under challenging conditions.
To facilitate easy setup and configuration, the GE SR469-P5-HI-A20 comes with the EnerVista 469 Setup software, allowing users to customize settings and monitor motor health efficiently. With a delivery time of approximately 4-5 weeks, this reliable and versatile relay is an essential component for any industrial control system.
